High-pressure hose with kink protection,
prevents damage to the inside of the cabinet
due to sudden pressure on the kinked hose
2 Pressure sensor with auto-detection of punch
through; punch cannot damage the die after
the punching process
3 Battery ready for use again after 30 minutes
even after full discharg
4 Heavy-duty aluminium design for less weight
of only 2.5 kg including battery
5 Roller-finished, particularly smooth cylinder
running surfaces protect against wear – even
under heavy loads
6 High punching force 75 kN
■ Prevents seizing up, wear, cold-welding, solidifying and fretting corrosion on threads of screws, nuts, bolts, tube threads and fittings.
■ ALFRA special metal lubricating paste is also particularly suitable for
the lubrication of cutting points on punching tools and high-loading
bearings and sliding surfaces.
■ Release-active and silicone-free.
■ Contents: 120 g
■ Heavy-duty tank
■ Tank venting filter
■ Reduced noise levels
■ Oil level indicator on tank
■ Precise start-up under load possible
■ Precise activation - the drain valve activated by the foot pedal allows
precise lowering of the load.
■ Hydraulic hose 2.0 m with quick coupling

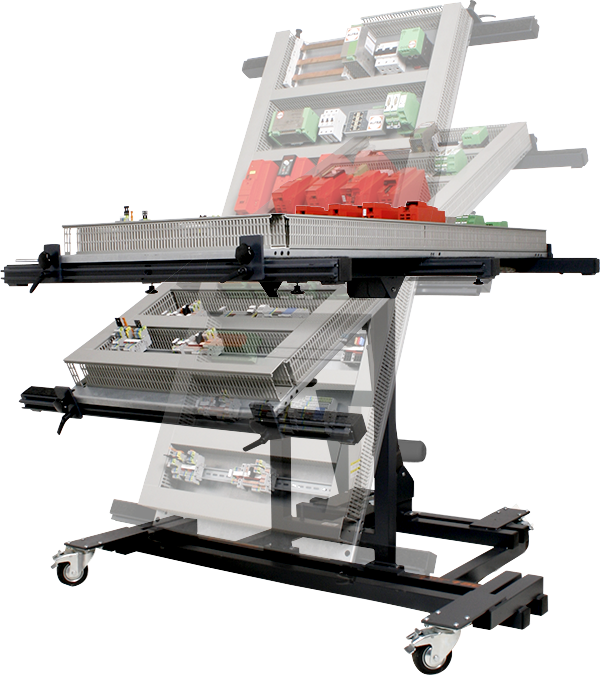

ALFRA ASSEMBLY TABLE AMT 150
Assembly table AMT 150
2 x clamping unit with bolt
2 x clamping unit with quick lock
Screw adapter for operating with battery drill
ALFRA ELECTRIC ASSEMBLY TABLE AMTE 250
Electric assembly table AMTE 250
2 x clamping unit with bolt
2 x clamping unit with quick lock
external charging station for the battery, with charging plug 220 V

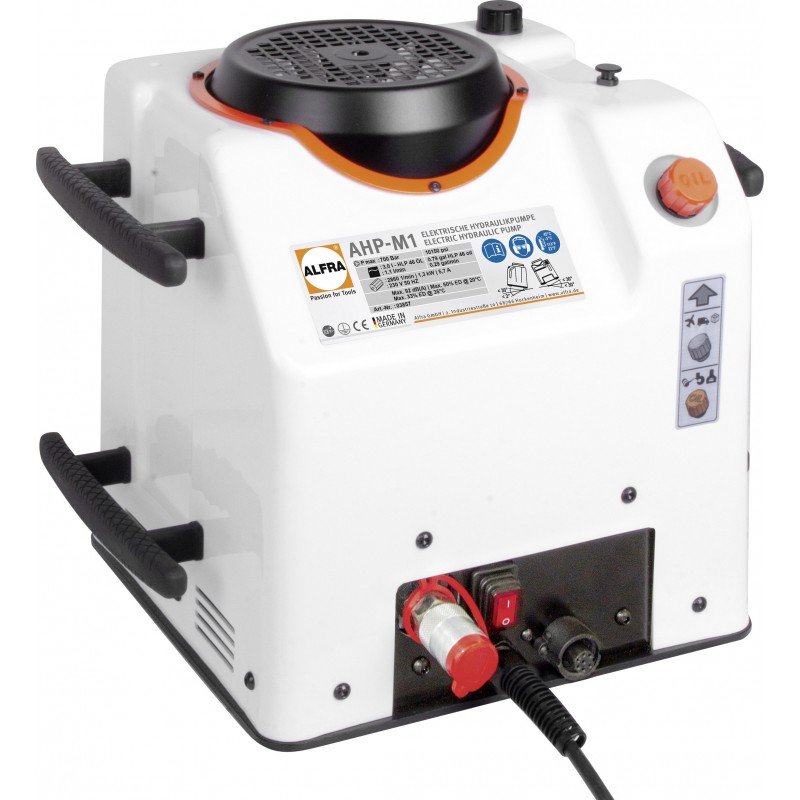

Technical data:
Max. pressure: 700 bar
Max. flow rate: 1.1 l/min
Oil type: HLP 46
Filling volume: 3.2 l
Working volume: 2.2 l
Weight: 29 kg
Operating voltage 230 V / 50 Hz
Power: 1.3 kW
Current consumption: 5.7 A
Motor speed: 2,860 rpm
Technical data:
Max. pressure: 700 bar
Max. flow rate: 0.58 l/min
Oil type: HLP 46
Filling volume: 3.2 l
Working volume: 2.2 l
Weight: 27 kg
Voltage / frequency: 230 V / 50 Hz
Power: 0.75 kW
Current consumption: 3.26 A
Motor speed: 2,800 rpm
Max. operating pressure 700 bar
Fitted pressure limiting valve
For all circular, square, rectangular and special shape hole punchers
The foot pump leaves both hands free for precise positioning and
punching on the control cabinet. The foot pump carrying frame is
splayed. This guarantees steady working with no risk of tipping
